Toyota Hilux (2015+) N80 GUN 2.8L & 2.4L TD 3' Stainless DPF-Delete Pipe
Product details
- Type 4x4 Exhaust System
- SKU M3-165
SKU: M3-165

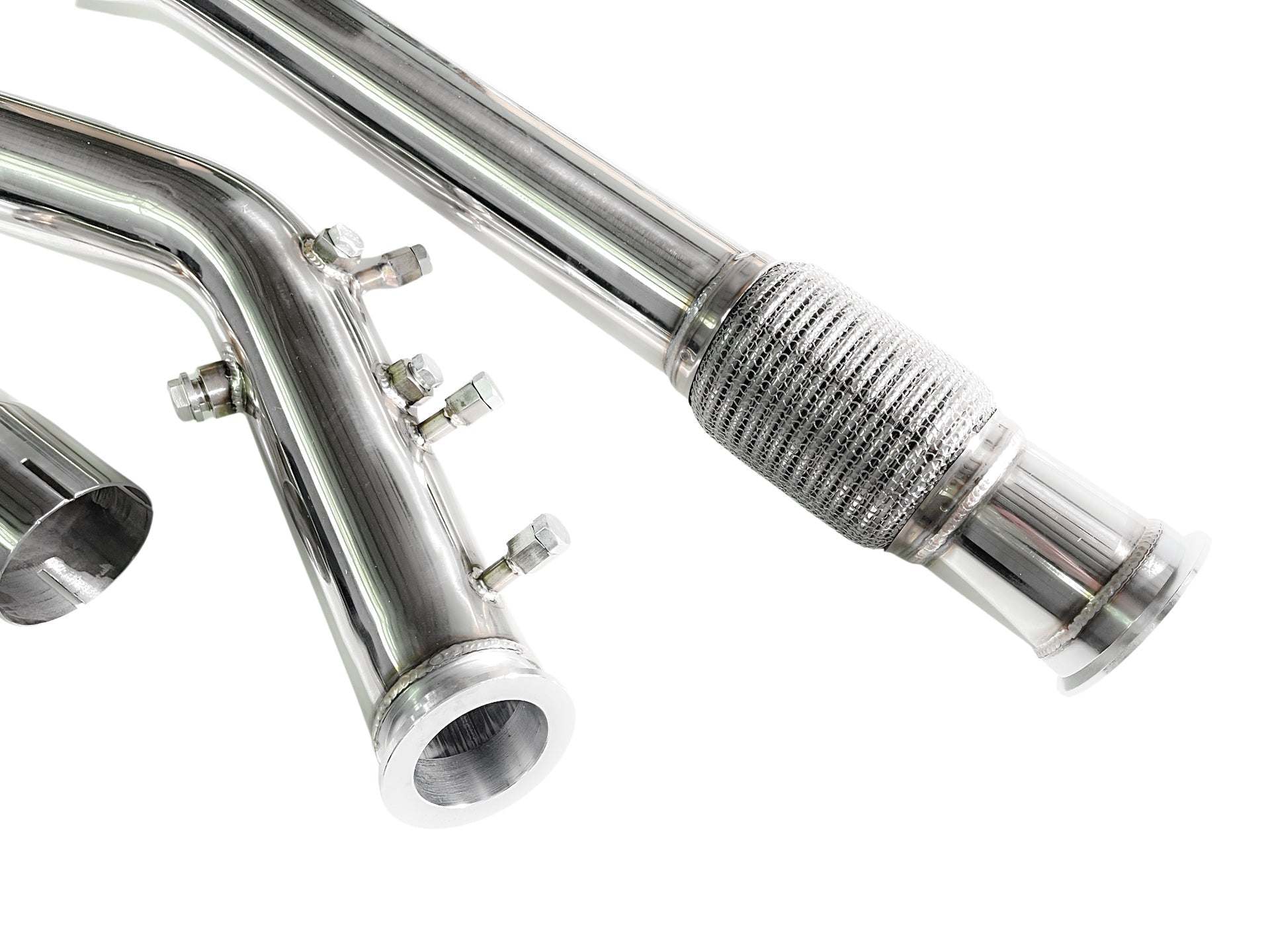

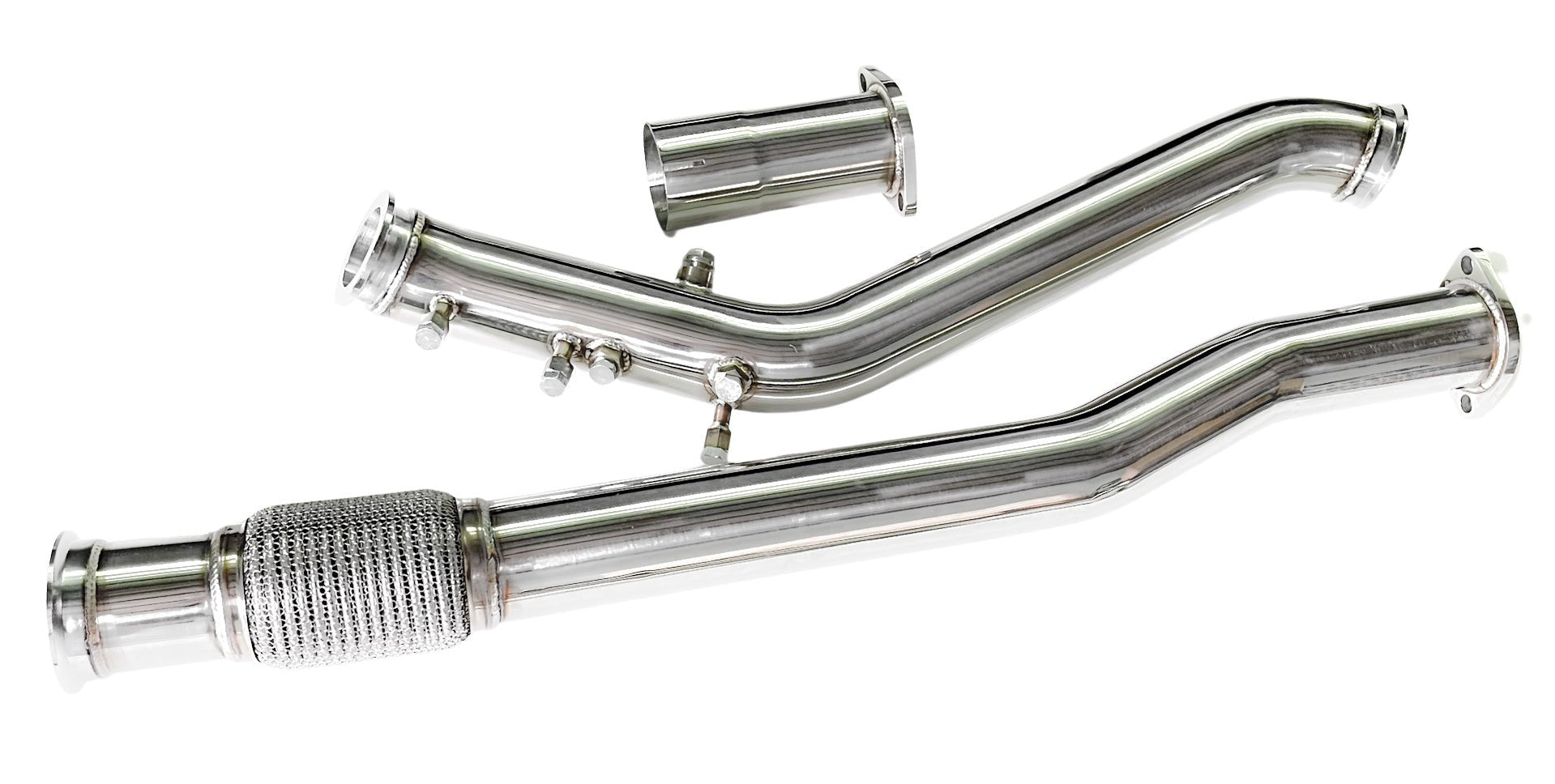

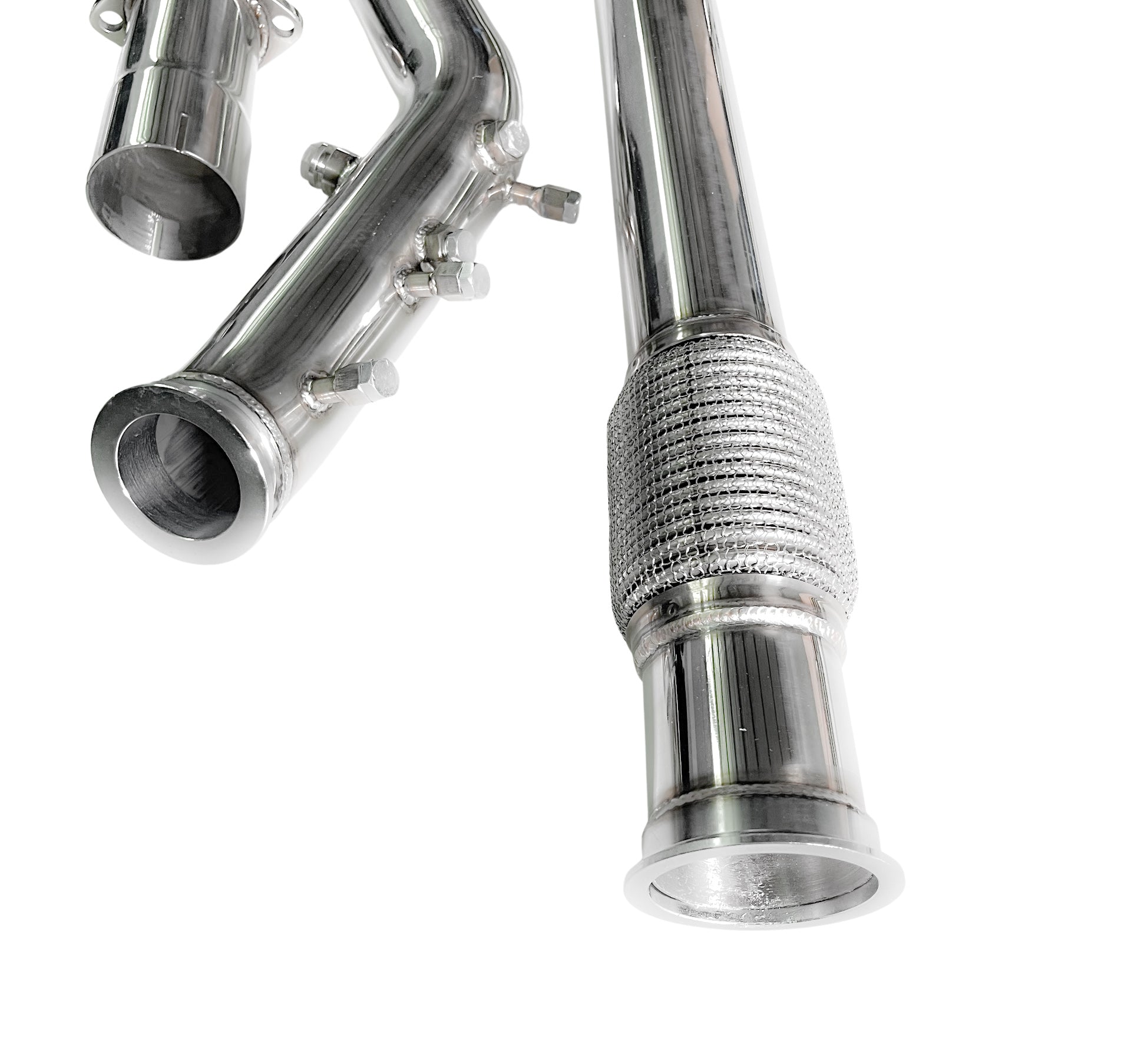

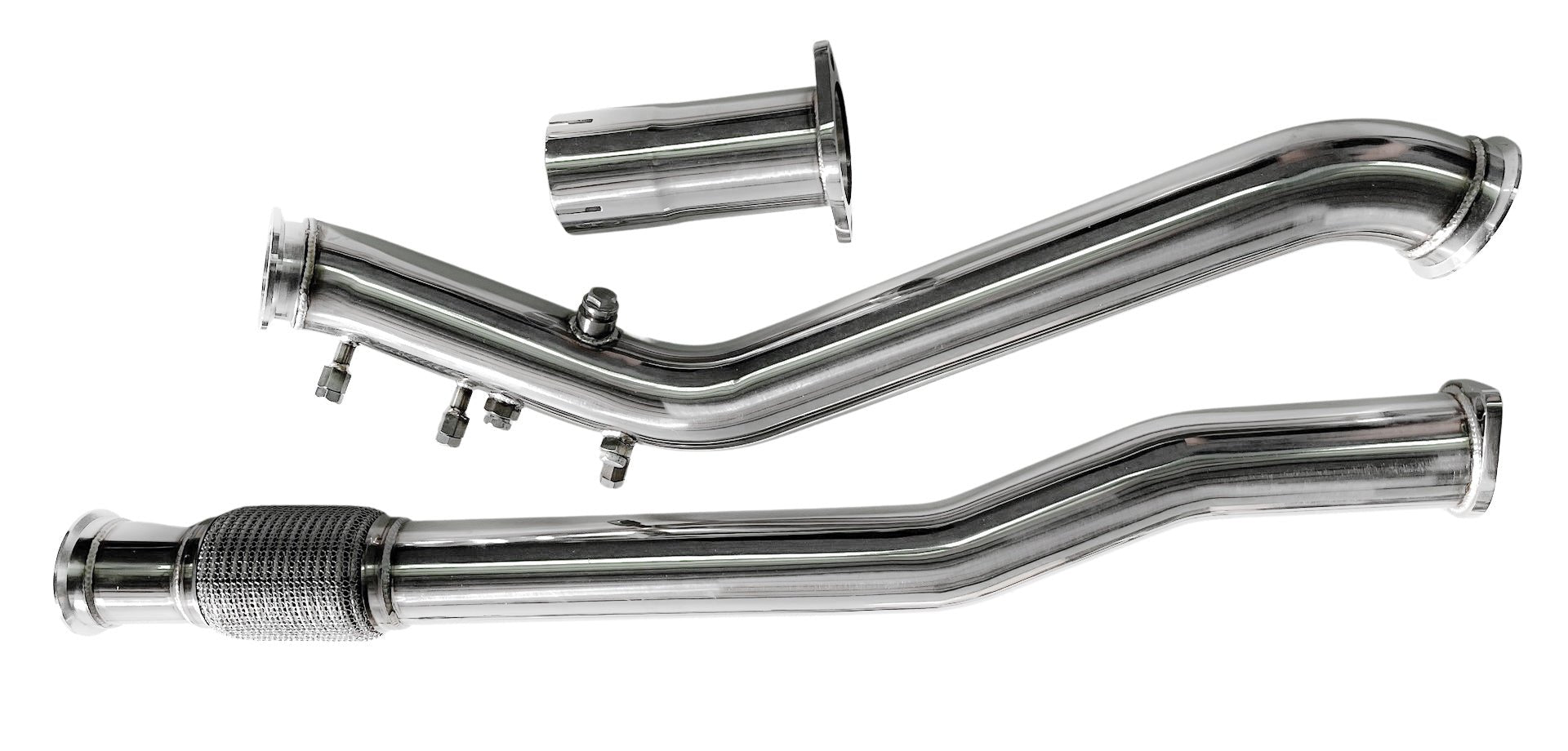

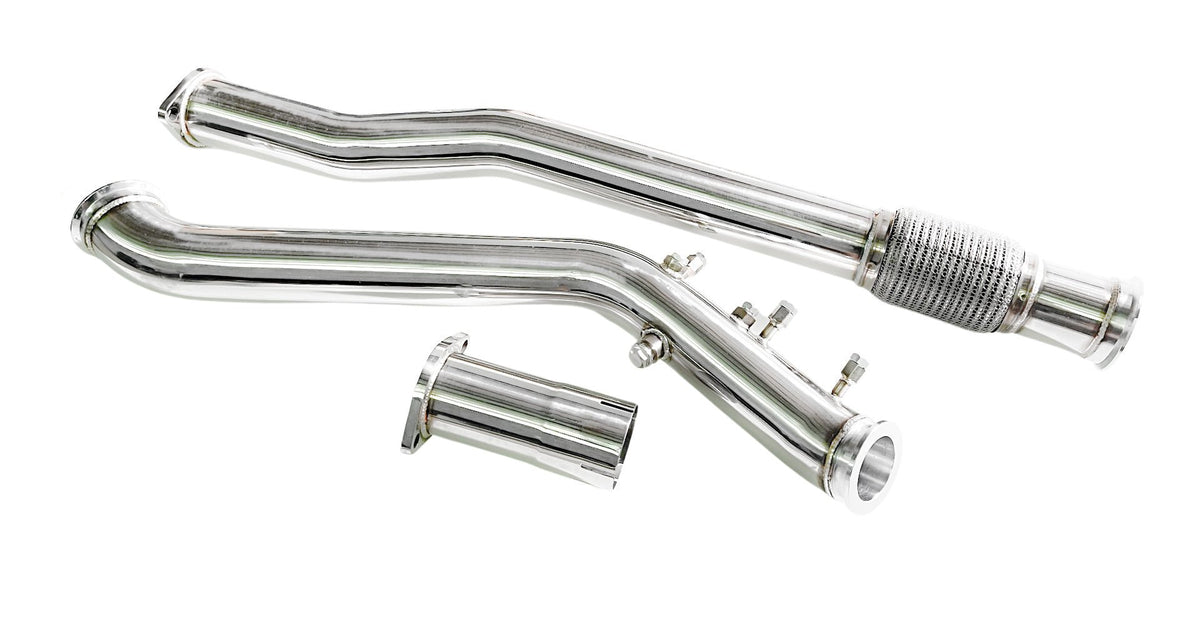

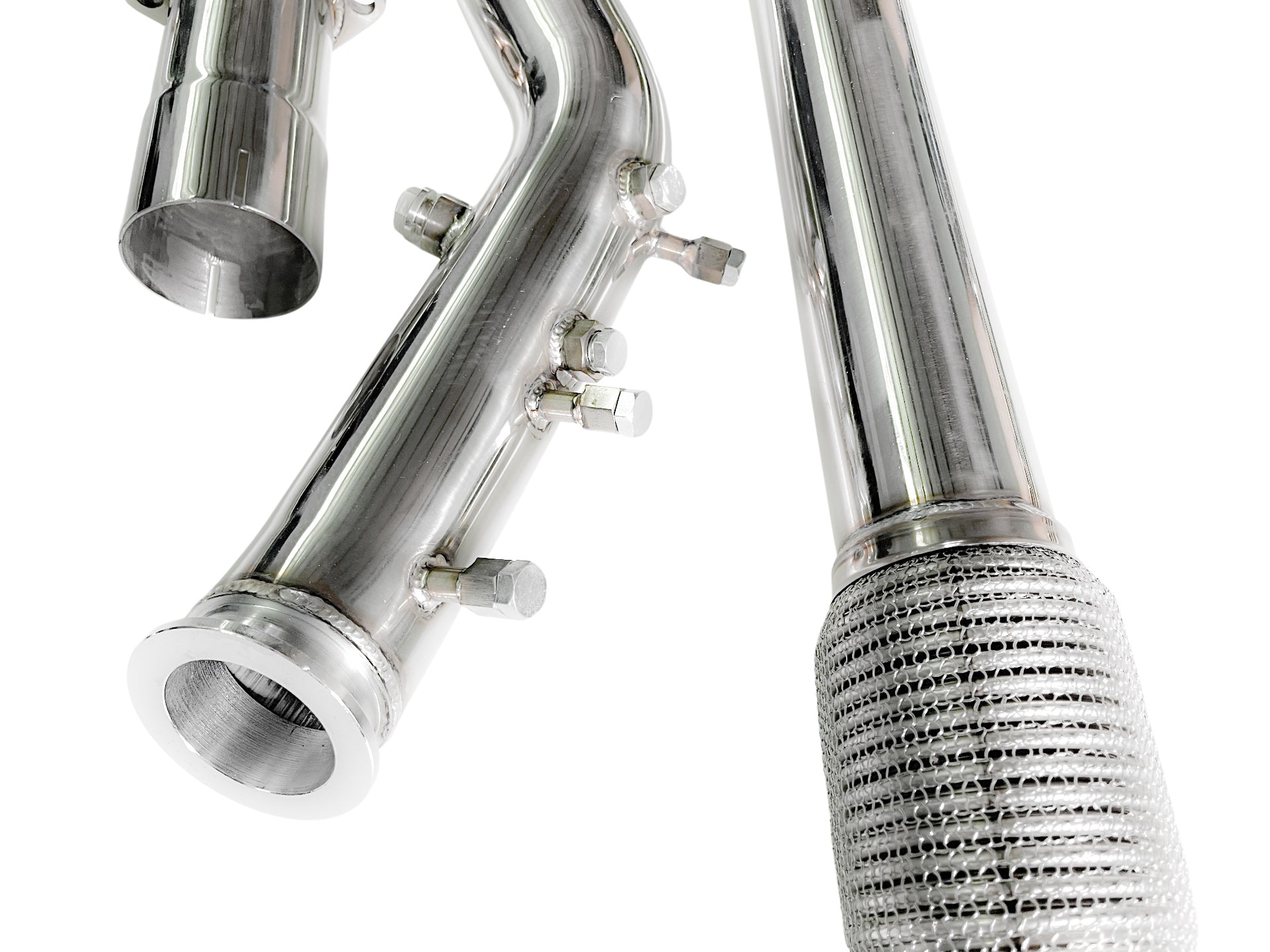

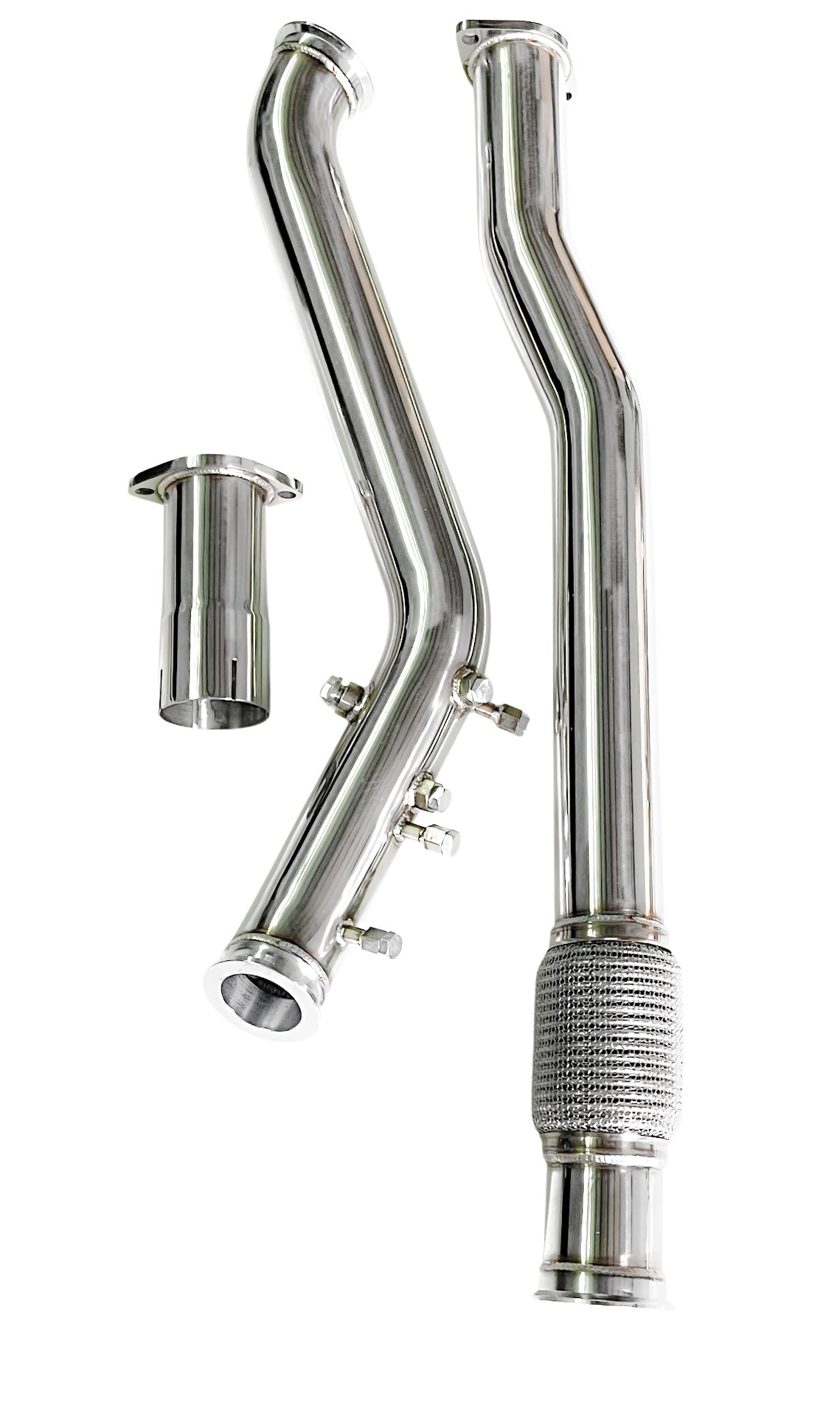

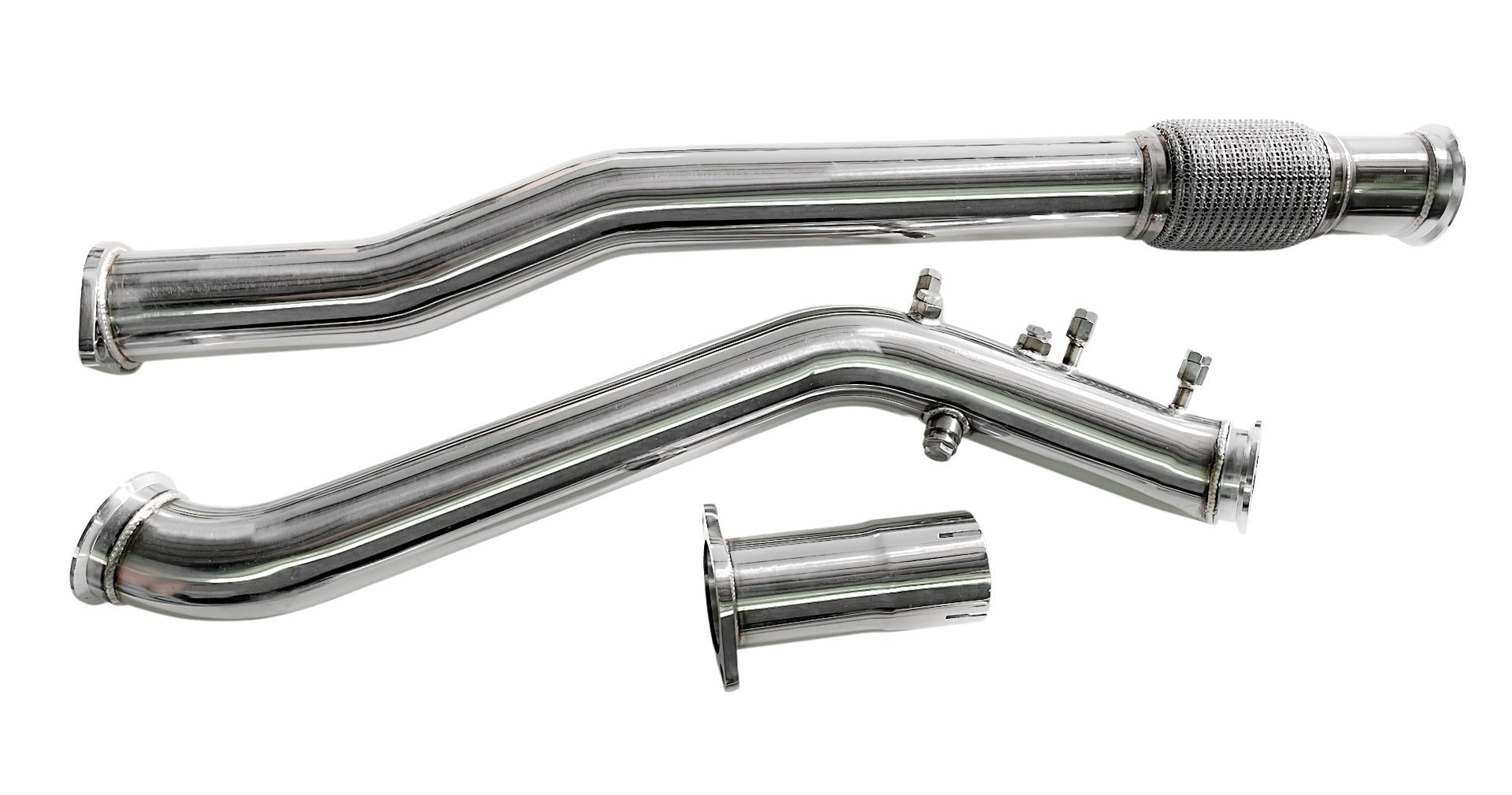

3' Stainless Steel DPF Delete Exhaust Upgrade for 2015+ Toyota Hilux N80 2.8L & 2.4L TD
Problems with the GUN N80 Hilux Diesel Particulate Filter are well documented. The Hilux runs an active DPF system that traps harmful diesel particulates in a honey comb structure, and then burns them off as the DPF flow is reduced. In the Hilux often the soot left behind after the burn cycle can build up and cause a permanent blockage and expensive failure
Signs your DPF is failing include reduced engine performance, higher fuel consumption along with more frequent burn cycles.
Remove your DPF, and upgrade the performance of your Hilux today with a full stainless steel PPD Performance system
Specifically designed for the Toyota Hilux GUN 2015+ 2.8L Turbo Diesel, this 3' stainless system removes the massive DPF restriction. These DPF's are prone to failure and significantly restrict performance.
This DPF-delete bolts directly up to the stock exhaust system. An adapter pipe is available free of charge if you require it to bolt up to the factory position DPF-back, please specify in the comments box when placing your order if this is required.
DPF DELETE SPECIFICATIONS:
- 304-grade 1.5mm thick polished stainless steel piping.
- Stainless steel flanges & V-band connection
- Stainless CNC machined turbo housing connection
- Straight through design for maximum efficiency
- Stainless 2 bolt connecting flange for bolt-on installation to factory exhaust
- TIG welded
- Mandrel Bent
- Gaskets, clamps and bolts included
Optional - Catalytic 200 cell ceramic high flow catalytic converter available.
Remote remapper information available HERE
Note: An ECU map is essential when deleting your DPF unless optioning with the DPF delete module.
Disclaimer: DPF removal components are designed for off-road use only with specific exemptions, they are not legal for road use. Please consider this before purchasing and installing.
Want the complete DIY package? PPD's Remote Remapper is the answer!As a tune is required when deleting your DPF, PPD Performance have developed a remote remapping solution, allowing you to load our tried and tested tune solution from the convenience of your very own home! The PPD Performance Remapper is the most convenient remote custom tuning solution on the market. Using the Remapper we can provide you with a tune which will increase the boost and fueling to take advantage of the extra airflow provided by your new exhaust system. This provides HUGE performance benefits on turbo diesels! |
CLICK HERE FOR MORE INFO! |
Toyota Hilux (05/2015 - on)
Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
---|---|---|---|---|---|---|---|---|
TOYOTA | HILUX | 06/2020 | - | Ute | GUN126 | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 05/2020 | - | Cab Chassis | GUN126 | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 05/2020 | - | Cab Chassis | GUN135R | 2GD-FTV | 2.4L | Diesel | Workmate Hi-Rider | Manual RWD |
TOYOTA | HILUX | 05/2020 | - | Ute | GUN136 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 07/2015 | - | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | D | AWD |
TOYOTA | HILUX | 07/2015 | - | Cab Chassis | GUN112_, GUN122_, GUN135_ | 2GD-FTV | 2.4L | Diesel | D | RWD |
TOYOTA | HILUX | 05/2015 | - | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | D | AWD |
TOYOTA | HILUX | 05/2015 | - | Ute | GUN112R, GUN120R, GUN122R, GUN135R | 2GD-FTV | 2.4L | Diesel | D | RWD |
TOYOTA | HILUX | 09/2017 | 04/2020 | Cab Chassis | GUN135R | 2GD-FTV | 2.4L | Diesel | Workmate Hi-Rider | Manual RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | SR EXTRA CAB | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Cab Chassis | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE EXTRA CAB | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | ROGUE, RUGGED, RUGGED X, SR5, SR5+ | Automatic/Manual 4WD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR HI-RIDER | Automatic/Manual RWD |
TOYOTA | HILUX | 10/2015 | 04/2020 | Ute | GUN125R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Automatic/Manual 4WD |
TOYOTA | HILUX | 07/2015 | 04/2020 | Cab Chassis | GUN126R | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 07/2015 | 04/2020 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | D | AWD |
TOYOTA | HILUX | 07/2015 | 04/2020 | Ute | GUN136 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 10/2015 | 06/2019 | Cab Chassis | GUN122R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Manual RWD |
TOYOTA | HILUX | 10/2015 | 06/2019 | Ute | GUN122R | 2GD-FTV | 2.4L | Diesel | WORKMATE | Manual RWD |
TOYOTA | HILUX | 07/2015 | 09/2019 | Ute | GUN126R | 1GD-FTV | 2.8L | Diesel | SR5 EXTRA CAB | Automatic 4WD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Cab Chassis | GUN123R | 1GD-FTV | 2.8L | Diesel | SR | Manual RWD |
TOYOTA | HILUX | 10/2015 | 09/2017 | Ute | GUN123R | 1GD-FTV | 2.8L | Diesel | SR EXTRA CAB | Manual RWD |
TOYOTA | HILUX | 07/2015 | 07/2017 | Cab Chassis | GUN123, GUN123R | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 07/2015 | 07/2017 | Ute | GUN123 | 1GD-FTV | 2.8L | Diesel | D | RWD |
TOYOTA | HILUX | 07/2015 | 09/2017 | Ute | GUN136R | 1GD-FTV | 2.8L | Diesel | SR5 HI-RIDER | Automatic RWD |
